In modern industrial automation equipment, cables, air tubes, and signal wires often need to move continuously with machine operation. Choosing the wrong cable carrier can lead to cable wear, dust contamination, unexpected downtime, and increased maintenance costs. Therefore, selecting the right Dust Proof Drag Chain for industrial machine cable protection is essential for improving equipment reliability and extending service life.
This guide explains how to choose the correct Dust Proof Drag Chain based on machine environment, cable requirements, and operating conditions.
What Is a Dust Proof Drag Chain?
A Dust Proof Drag Chain is a cable management system designed to protect and guide moving cables, electrical wires, and pneumatic tubes in industrial equipment.
Compared with standard drag chains, dust proof drag chains provide better protection against dust, chips, and external contaminants. They help reduce cable damage caused by repeated bending and movement, ensuring more stable machine operation.
Dust Proof Drag Chains are widely used in:
- CNC machines
- Industrial automation systems
- Robotic equipment
- Laser machines
- Precision manufacturing equipment
Choosing the correct drag chain can reduce maintenance frequency and improve overall equipment performance.
Choose a Dust Proof Drag Chain Based on the Working Environment
The operating environment is one of the most important factors when selecting a Dust Proof Drag Chain.
Standard Industrial Environment
For general automation equipment and production lines, consider:
- Wear resistance
- Mechanical strength
- Long service life
Dust and Chip Environment
For CNC machining, woodworking machines, and metal processing equipment, choose a drag chain with better protective performance to prevent dust, chips, and debris from affecting internal cables.
Clean and Precision Environment
For semiconductor equipment, inspection machines, and precision automation systems, consider:
- Low particle generation
- Anti-static performance
- Clean environment requirements
How to Select the Correct Drag Chain Size?
Proper sizing is critical for long-term performance.
1. Check Cable and Tube Dimensions
Before selecting a Dust Proof Drag Chain, confirm:
Cable diameter
Number of cables
Pneumatic tube size
Internal arrangement
A drag chain that is too small can increase friction and compress cables, reducing cable lifespan.
2. Choose the Correct Bending Radius
The bending radius is an important selection factor. If the radius is too small, it may cause:
Cable fatigue
Signal problems
Premature cable failure
The bending radius should match the cable specification and machine movement requirements.
Consider Speed, Motion, and Operating Conditions
Different machines require different drag chain performance.
High-speed equipment requires:
- Low friction design
- Wear-resistant materials
- Stable movement performance
For robots and frequently moving automation systems, choose products with high fatigue resistance.
Also consider:
- Temperature range
- Oil exposure
- Chemical environments
Select the Right Material
Different materials provide different performance characteristics.
Nylon (PA)
Features:
- High strength
- Good wear resistance
- Cost-effective solution
Suitable for most industrial applications.
Reinforced Nylon
Features:
- Higher load capacity
- Improved durability
Suitable for high-speed and heavy-duty equipment.
Special Engineering Plastics
Features:
- High temperature resistance
- Chemical resistance
- Special industrial applications
Common Mistakes When Selecting a Dust Proof Drag Chain
Choosing Only Based on Price
Low-cost products may result in:
- Shorter service life
- Frequent replacement
- Higher maintenance costs
Ignoring Internal Space
An undersized drag chain can cause:
- Cable compression
- Increased friction
- Poor movement performance
Ignoring Machine Operating Conditions
Speed, acceleration, and movement frequency must be considered to avoid premature failure.
Final Checklist Before Buying a Dust Proof Drag Chain
Before purchasing, confirm:
- Cable size
- Inner height and width
- Bending radius
- Machine speed
- Working environment
- Material requirements
- Dust protection requirements
Conclusion
Choosing the right Dust Proof Drag Chain for industrial machine cable protection helps protect cables, improve equipment reliability, and reduce maintenance costs.
When selecting a dust proof drag chain, do not focus only on price. Consider the machine environment, cable specifications, movement conditions, and material performance to ensure the best long-term solution.
A properly selected Dust Proof Drag Chain can become an important component for stable and efficient industrial automation systems.

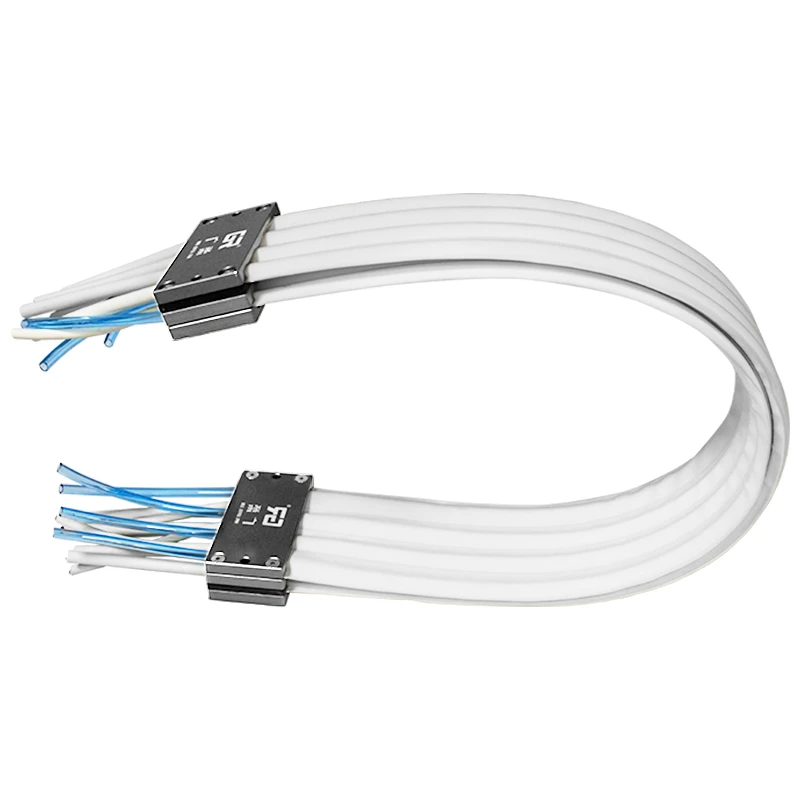

For manufacturers interested in Corrugated Tube Dust-free Drag Chain:
